| Caractéristique(s) |
|
| BAMS_TURNING_1 (BAMS_TURNING_1) |
0 deg |
| BAMS_TURNING_2 (BAMS_TURNING_2) |
0 deg |
| BAWS_TURNING_1 (BAWS_TURNING_1) |
0 deg |
| BAWS_TURNING_2 (BAWS_TURNING_2) |
0 deg |
| DMIN_1_TURNING_1 (DMIN_1_TURNING_1) |
25 mm |
| DMIN_1_TURNING_2 (DMIN_1_TURNING_2) |
25 mm |
| GAMO_TURNING_1 (GAMO_TURNING_1) |
-12.9 deg |
| GAMO_TURNING_2 (GAMO_TURNING_2) |
-8 deg |
| HF_TURNING_2 (HF_TURNING_2) |
0 mm |
| HF_TURNING_1 (HF_TURNING_1) |
0 mm |
| KAPR_1_TURNING_2 (KAPR_1_TURNING_2) |
35 deg |
| KAPR_2_TURNING_1 (KAPR_2_TURNING_1) |
35 deg |
| KAPR_1_TURNING_1 (KAPR_1_TURNING_1) |
95 deg |
| LAMS_TURNING_2 (LAMS_TURNING_2) |
0 deg |
| LAMS_TURNING_1 (LAMS_TURNING_1) |
-8 deg |
| LF_TURNING_2 (LF_TURNING_2) |
178.562 mm |
| LF_TURNING_1 (LF_TURNING_1) |
184.15 mm |
| LPR_TURNING_2 (LPR_TURNING_2) |
184.15 mm |
| LPR_TURNING_1 (LPR_TURNING_1) |
184.15 mm |
| LU_TURNING_1 (LU_TURNING_1) |
63.15 mm |
| LU_TURNING_2 (LU_TURNING_2) |
57.562 mm |
| OHN_TURNING_2 (OHN_TURNING_2) |
13.462 mm |
| OHN_TURNING_1 (OHN_TURNING_1) |
19.05 mm |

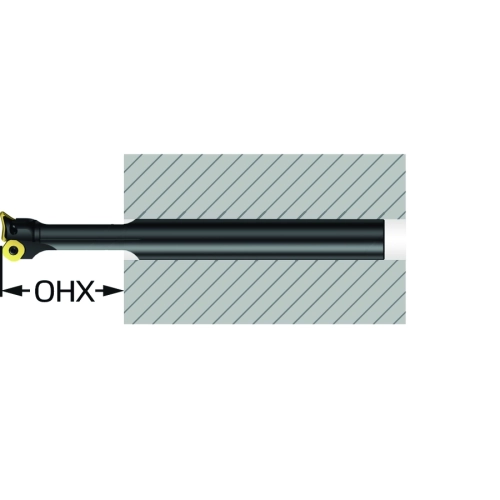

| OHX_TURNING_2 (OHX_TURNING_2) |
57.562 mm |
| OHX_TURNING_1 (OHX_TURNING_1) |
63.15 mm |
| PSIR_TURNING_1 (PSIR_TURNING_1) |
-5 deg |
| PSIR_TURNING_2 (PSIR_TURNING_2) |
55 deg |
| RMPX_TURNING_2 (RMPX_TURNING_2) |
0 deg |
| RMPX_TURNING_1 (RMPX_TURNING_1) |
0 deg |
| WF_TURNING_1 (WF_TURNING_1) |
13.03 mm |
| WF_TURNING_2 (WF_TURNING_2) |
10.03 mm |
| Logement de plaquette (CUTINT_MAS) |
CoroTurn PRIME PI-A (PI-A0608) |
| Logement de plaquette (CUTINT_MAS) |
CoroTurn PRIME PI-G (PI-G0808) |
| CXSC_TURNING_1 (CXSC_TURNING_1) |
axial inclined exit |
| CXSC_TURNING_2 (CXSC_TURNING_2) |
axial inclined exit |
| HAND_TURNING_1 (HAND_TURNING_1) |
Right |
| HAND_TURNING_2 (HAND_TURNING_2) |
Right |
| MIID_TURNING_1 (MIID_TURNING_1) |
PI-A0608 |
| MIID_TURNING_2 (MIID_TURNING_2) |
PI-G0808 |
| MTP_TURNING_1 (MTP_TURNING_1) |
clamp with screw through hole |
| MTP_TURNING_2 (MTP_TURNING_2) |
clamp with screw through hole |
| SSC_M_TURNING_2 (SSC_M_TURNING_2) |
PI-G08 |
| SSC_M_TURNING_1 (SSC_M_TURNING_1) |
PI-A06 |
| SSC_N_TURNING_1 (SSC_N_TURNING_1) |
PI-A06 |
| SSC_N_TURNING_2 (SSC_N_TURNING_2) |
PI-G08 |
| Interface adaptative direction machine (ADINTMS) |
"Cylindrical shank without clamping features (without flange) -inch: 3/4" |
| Diamètre de connexion (DCONMS) |
19.05 mm |
| Code du type d'orifice d'adduction du liquide de coupe (CNSC) |
axial concentric entry |
| Hauteur totale (OAH) |
19.05 mm |
| Diamètre du corps (BD) |
19.05 mm |
| Code matériau du corps (BMC) |
Steel |
| Marque du produit (MARQUE) |
SANDVIK |
| Poids de l'élément (WT) |
0.0003 kg |
