2 x Plaquette gorge interieur marque HORN référence RS114.0250.1.D2EG55

Catégorie : Plaquettes pour gorge radiale (TRNP_RA_SLD_COR)

Référence COC : 314045

Référence fabricant : RS11402501D2EG55

Marque : HORN

Prodfam : 114 PLAQUETTE GORGE INTERIEUR

Prix de vente : 52,94 €/HT

Reduction : 7.00%

Prix de vente conseillé : 28,46 €/HT (par pièce)

Conditionnement : 2 pièce(s)

Classification des matières niveau 1(TMC1ISO) :
P
M
K

Sur commande



Informations de recherche : [ADINTMS:HORN B114 - 311090R][CDX:6.5][DMIN1:16.5][HAND:R][LF:5][MARQUE:HORN][RE:0.2]

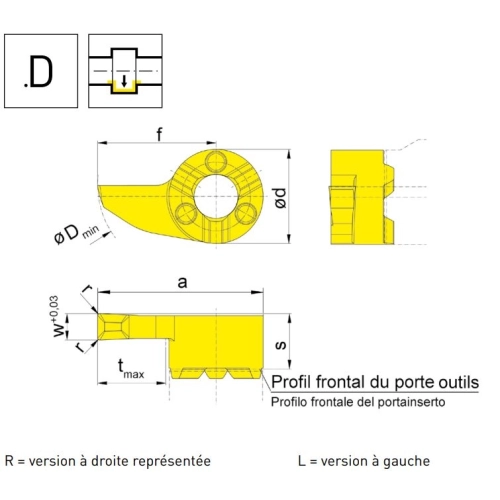

Caractéristique(s)
Diamètre d'alésage minimal (Dmin) 16.5 mm
Interface adaptative direction machine (ADINTMS) "HORN B114 - 311090R"
Longueur fonctionnelle (S) 5 mm
Sens (HAND) R
Largeur de coupe (W) 2.5 mm
Profondeur de coupe maximale (Tmax) 6.5 mm
Rayon de bec (r) 0.2 mm
Nuance (GRADE) EG55
Largeur fonctionnelle (f) 11.3 mm
Largeur du corps (d) 9 mm
Valeur a sur plan (HORN_a) 15,8 mm
Code ISO matière à usiner (TMC1_ISO) PMK
Marque du produit (MARQUE) HORN
Délai (DELAI) 2



ADINTMS : "HORN B114 - 311090R"
